CNC-Mill

2018 - Personal

This cnc-mill project is a less artistic one but for me necessary step for me to be able to handle the increasing mechanical complexity and physicality into my projects.
After doing some research on CNC-Mill's in general and which one to purchase I decided to take on the challenge build one by myself. Not just to have a CNC-Mill at the end but to learn new skill, solidify the knowledge I already had and make the experiences you (have to) make building a machine like this.


Spec:

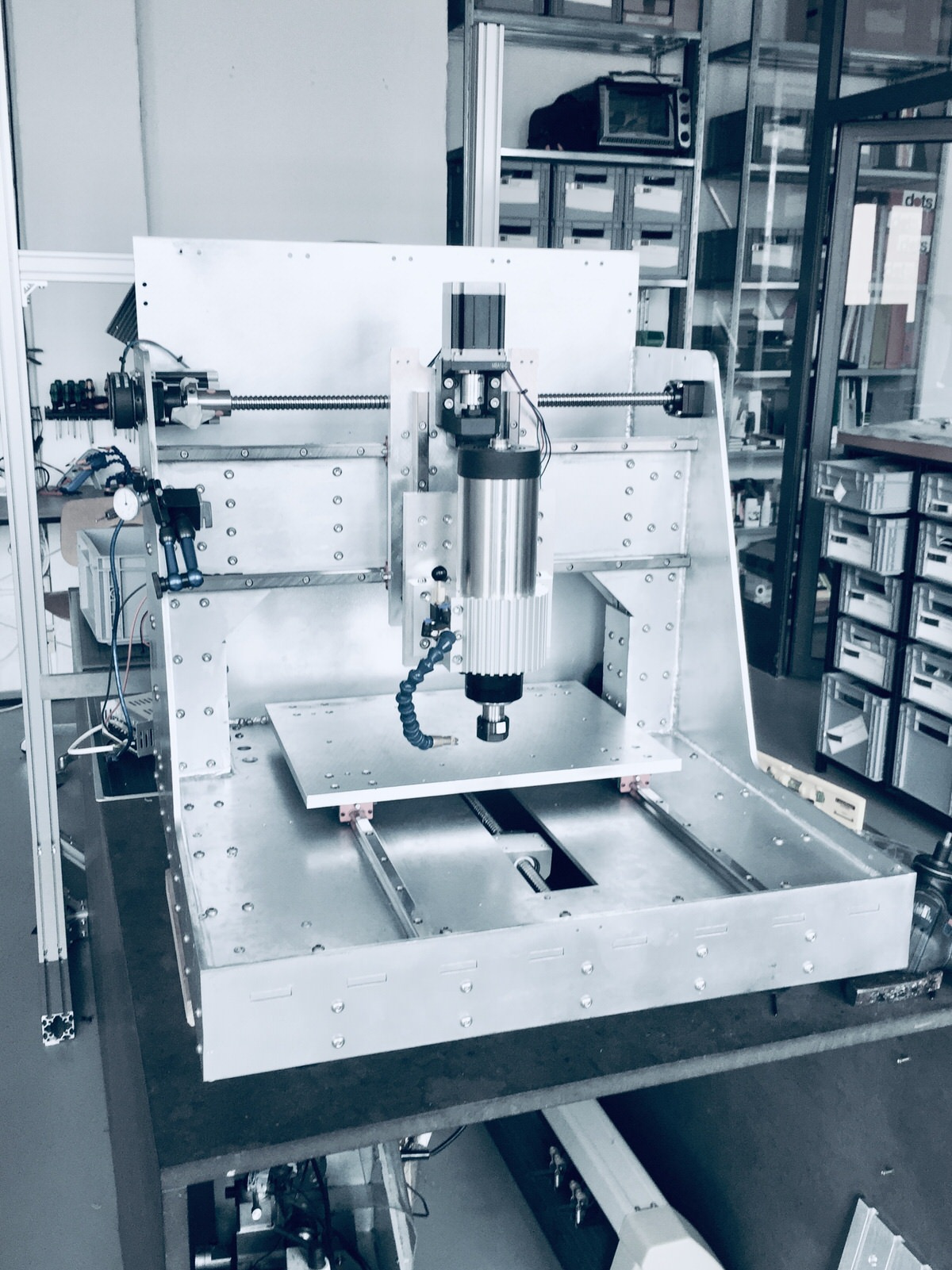

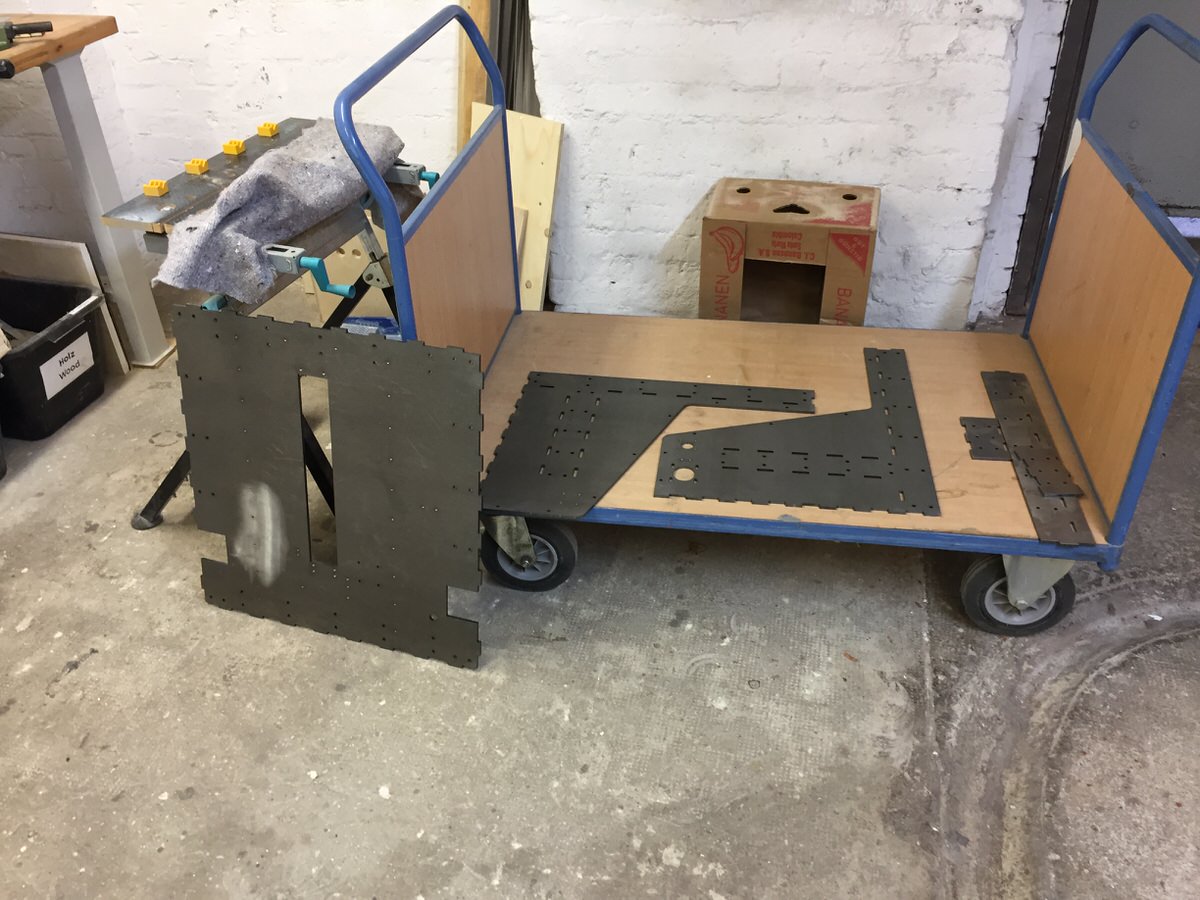

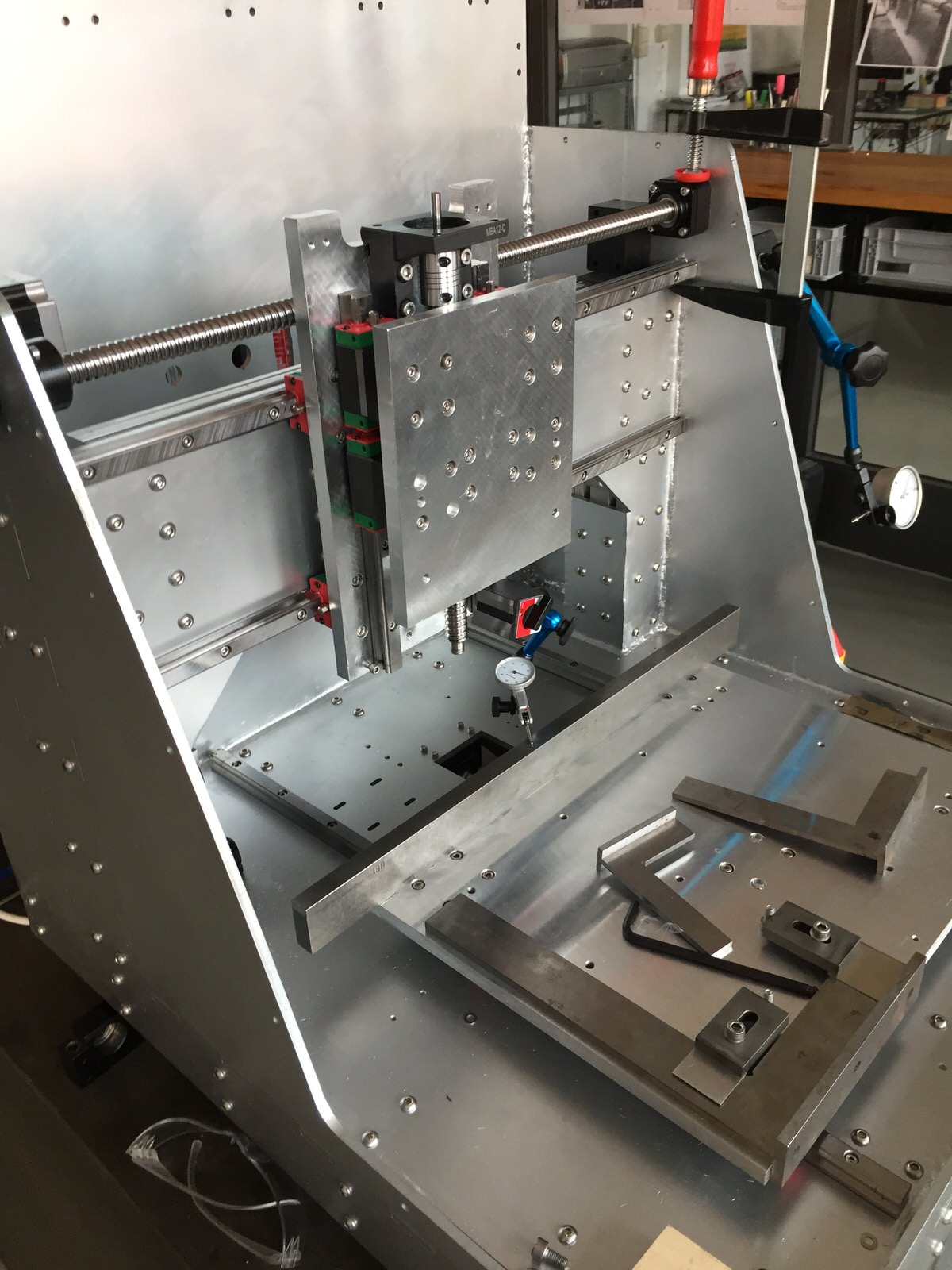

  • steel/aluminium frame
  • X: 400mm - Y: 300mm - Z: 120mm
  • 2.2Kw - 24000 RPM - ER20 Spindel
  • Nema 23
  • Mach3 (Software)

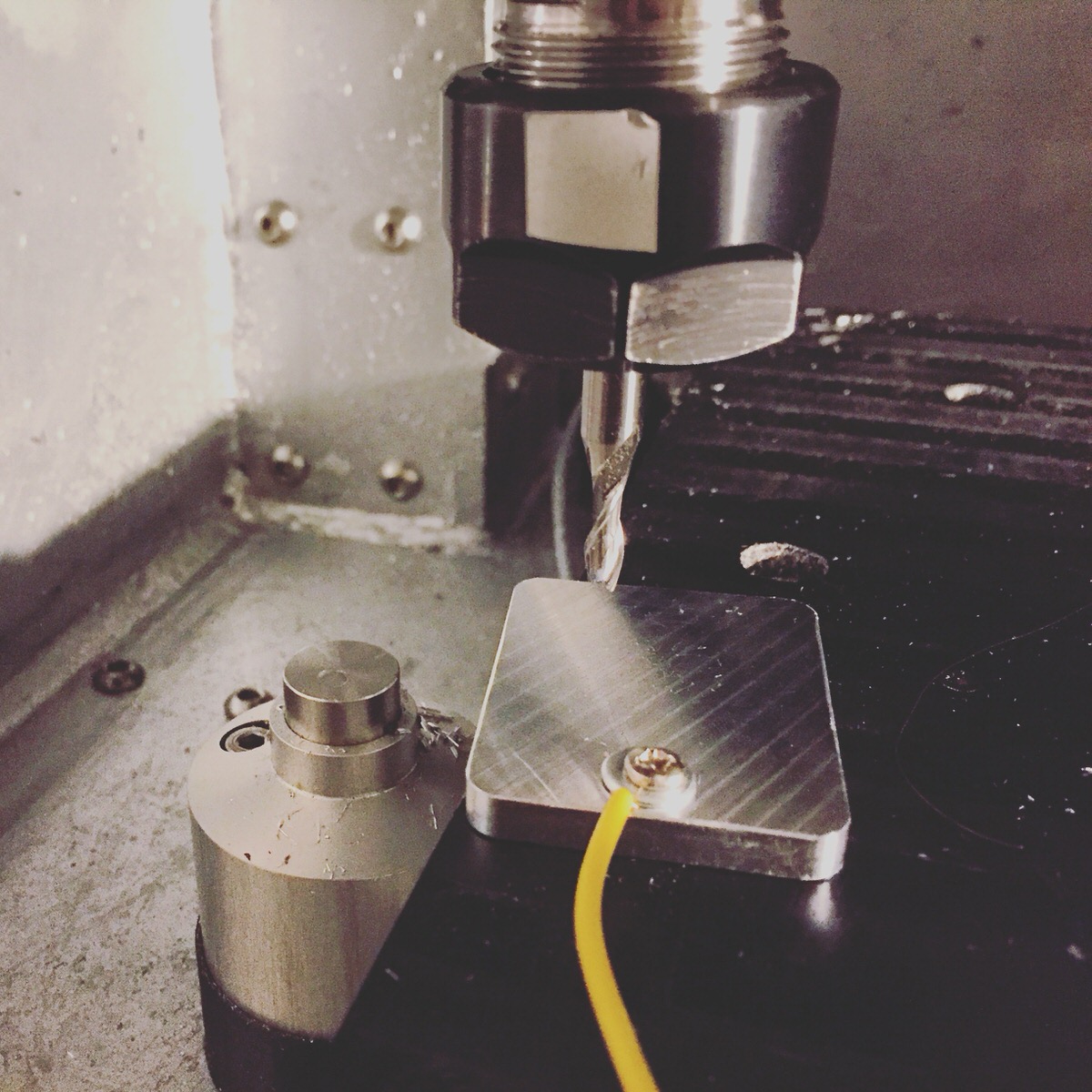

  • Touchplate + ToolOffset Sensor
